I-Achelous 500mm EC Centrifugal Fan ye-AHU Retrofit

The I-Achelous Series EC Fan imele isizukulwane esilandelayo se abalandeli be-centrifugal abonga amandla, eklanyelwe ukuhlangabezana nesidingo esikhulayo sokusimama, izixazululo zokungenisa umoya ezisebenza kahle kakhulu. Yakhelwe ukonga amandla nokuthembeka, laba balandeli bahlanganisa ubuchwepheshe bezimoto ze-EC obuthuthukisiwe nedizayini emisha ye-aerodynamic ukuze ilethe ukusebenza okuphezulu kuyilapho incishiswa ukusetshenziswa kwamandla.

Ngokugxila ekusebenzeni kahle okuphezulu, ukusebenza komsindo ophansi, nokulawula okunembayo, i-Archelous Series ilungele uhla olubanzi lwe-appliaciton, kufaka phakathi ukulungiswa kabusha kwe-New Generation AHU kuya ku-AHU. Uchungechunge luhlangabezana nekhwalithi yamazwe ngamazwe kanye namazinga okuphepha, aqinisekisa ukwethembeka okungaguquki kuzo zonke izinhlelo zokusebenza.

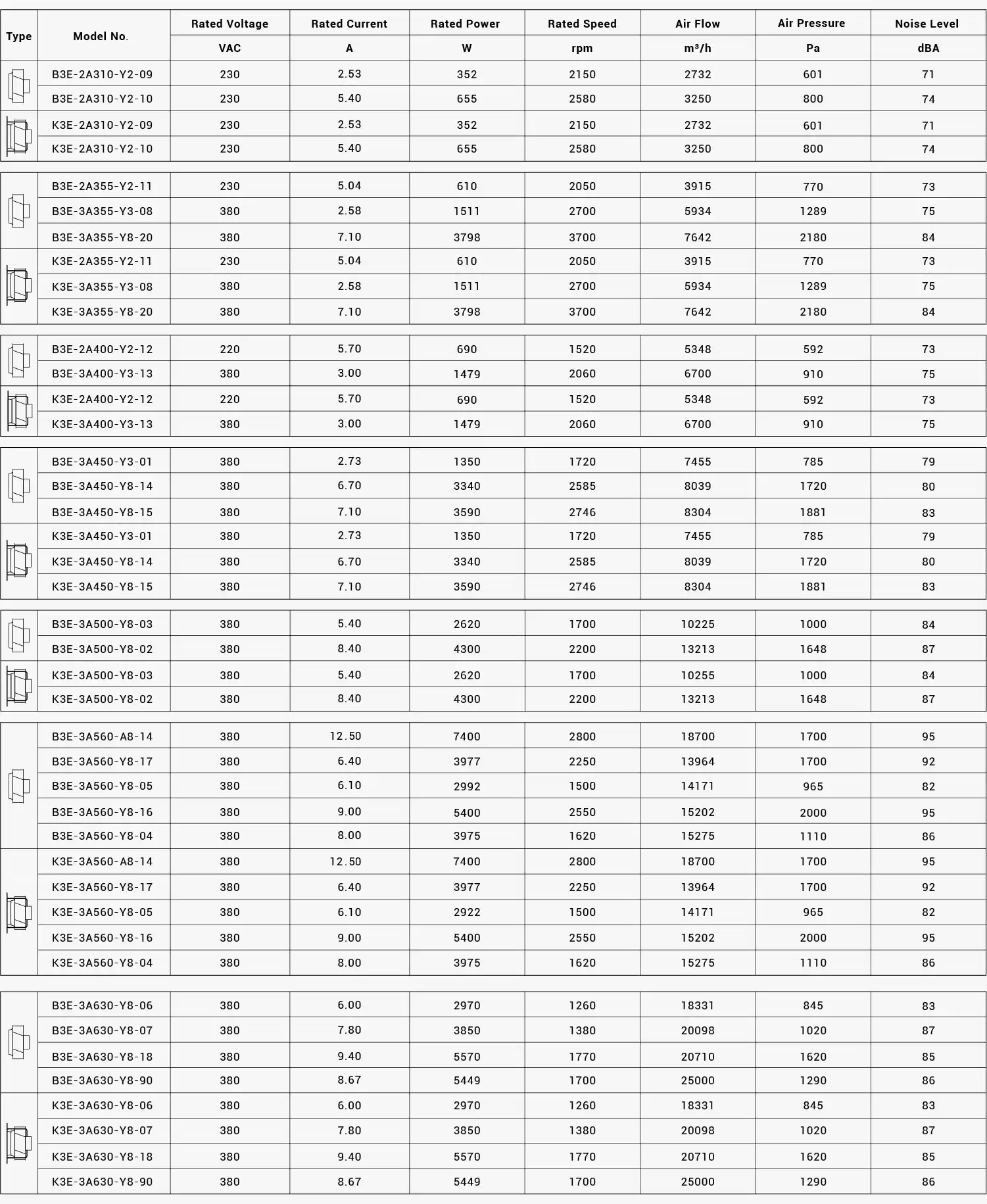

Iklanyelwe ukuguquguquka, i-Achelous Series Umlandeli we-EC inikeza osayizi abahlukahlukene be-impeller, kusukela 310mm ukuze 630mm, ekwazi ukufeza ukugeleza komoya okuphezulu okungu-25,000 m³/h futhi ingcindezi emile efika ku-2,300 Pa. Iphinde futhi isekele ukulungiselelwa okufana nezindonga zabalandeli ezidingweni eziphezulu zokugeleza komoya. Izinketho ezingenziwa ngendlela oyifisayo zihlanganisa ukuvikela ukugqwala kwe-C5, isilinganiso sokuvikela se-IP56, nokusebenza emazingeni okushisa aphansi njenge -40°C. Ukwengeza, uchungechunge luhlinzeka ngokukhethwa kwezinhlobo zezimoto—EC, DC, noma AC—ukuze zifane nezidingo ezithile zamandla nokusebenza kahle.Thuthukela ku-Achelous EC Fan ukuze uthole ukusebenza kahle okuthuthukisiwe, ukulungiswa okuncishisiwe, kanye nendlela elungele ikusasa yobuchwepheshe bokungenisa umoya.

Izici Product

Ukucindezela Okuphezulu Okuqinile

• Ifeni ye-centrifugal ama-blade-dimensional blades zithuthukiswa ngokusebenzisa ugqinsi lwesendlalelo somngcele ophumayo njengethagethi yokuthuthukisa, okuvumela i-impeller ukuthi isebenze ngempumelelokhiqiza umfutho we-static ophezulu ngesivinini esikhulu sokujikeleza.Umthelela onqenqemeni oluphambili lwe-blade kanye nokuhlukaniswa onqenqemeni olulandelanayo kokubili kwehliswa ukuya kumazinga ahlukahlukene, ngaleyo ndlela kuncipha ukulahlekelwa kokugeleza kwangaphakathi ngaphakathi kwe-impeller futhi kuthuthukiswe ukusebenza kahle. Idizayini encishisiwe yokubala i-blade isiza ukugcina ukuhlukana okuhle kokugeleza ngaphansi kwezimo zokugeleza okuphezulu, kuqhubeke nokunciphisa ukulahleka kokugeleza.

Umsindo ophansi

• I-impeller yenziwe high-amandla aluminium magnesium ingxubevange, iqinisekisa ukuphuma kwe-axial ne-radial okuncane, kunciphisa ukungalingani, nokulawula ukudlidliza ngempumelelo. Umqoqi owenziwe kahle omise okwe-conical-arc uthuthukisa ukusebenza kahle kokuthatha ngokulungisa ama-engeli okunweba nawokufinyeza. Ngesikhathi esifanayo, ukufakwa okuhlanganisiwe kuqinisekisa isikhundla esifanele sokuhlasela komqoqi epuleti langaphambili le-impeller, kunciphisa umsindo we-vortex.

Energy Efficiency

• Idizayini ye-electromagnetic ethuthukisiwe: Kusetshenziswa isofthiwe yokulingisa kazibuthe kagesi i-Ansoft Maxwell kanye nesistimu kazibuthe kagesi yakhelwe futhi yathuthukiswa ngenqubo yokuklama eya phambili.Isixazululo seshafu yemoto evalekile siqinisekisa ukuthi akukho ukugqwala kozibuthe.

• Ukusebenza kahle kakhulu: Samukela ubuchwepheshe be-EC obuthuthukisiwe, okwenza injini ikwazi ukugcina ukusebenza kahle okuphezulu ngaphansi kwezimo ezihlukahlukene zokusebenza, kunciphisa kakhulu ukusetshenziswa kwamandla nokusiza abasebenzisi bonge ezindlekweni zokusebenza zesikhathi eside.

• Impendulo esheshayo: I-motor inekhono elihle kakhulu lokulawula ijubane, elivumela ukuthi lizivumelanise ngokushesha nokulayisha izinguquko futhi liqinisekise ukusebenza okuzinzile ezindaweni zokusebenza ezahlukene.

• Ukulawula okunembile: Ama-algorithms okulawula anembayo anika amandla injini ukuthi ikwazi ukugcina ukusebenza okungaguquki ekugelezeni komoya okungashintshi kanye nezinhlelo zokusebenza zejubane ezingaguquki, okuthuthukisa ukwethembeka kwesistimu iyonke.

• Ukulawula ikhwalithi okuqinile: Sisebenzisa izindinganiso eziqinile zokulawula ikhwalithi kuyo yonke inqubo yokukhiqiza, kusukela ekukhethweni kwezinto ezingavuthiwe kuya ekuhlolweni komkhiqizo wokugcina, siqinisekisa ukuthi injini ngayinye ihlangabezana namazinga okusebenza aphezulu kanye nekhwalithi.

• Idizayini yokuqina: Injini yakhelwe ngezinto ezisezingeni eliphezulu nezingagqwali, iqinisekisa ukusebenza okuzinzile ngisho nasezimweni ezinzima ezinweba impilo yayo yesevisi.

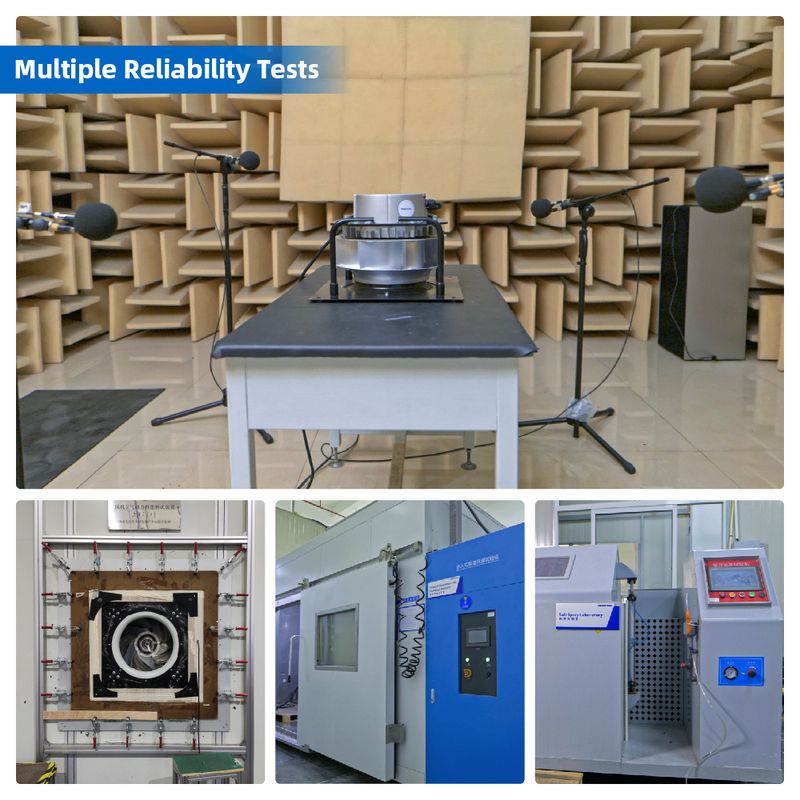

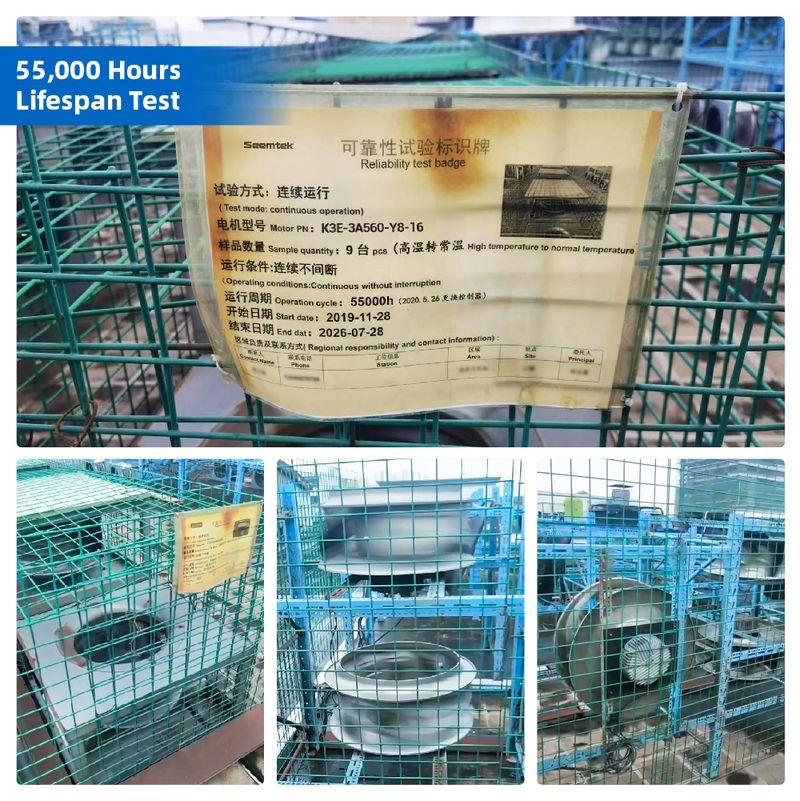

• Ukuqinisekiswa kokusebenza kwesikhathi eside: Ngemijikelezo eminingi yokuhlola ukuqina nokuqinisekiswa kwesicelo esisebenzayo, ukuzinza kwesikhathi eside kwemoto kuqinisekiswa ngokugcwele, kunciphisa imvamisa yokuyilungisa.

I-Flexible kanye ne-Percise Control

• 0.1V ukunemba kokulawula: Kusetshenziswa i-Altium Designer ekuthuthukisweni kwesistimu yokulawula, kusetshenziswa indlela yokulawula i-vector. Ngokubola kwamandla amanje abe yizici ze-excitation kanye ne-torque ngokuguqulwa kokuxhumanisa, ukunemba okuhle kakhulu kokulawula kanye nesivinini sokuphendula kufinyelelwa. Isixazululo se-sensorless full-speed range control sabalandeli siqinisekisa ukulawula okuzinzile ngisho nasezimweni ezinzima. Ukwengeza, ifaka ukulawulwa kwesivinini kwe-MODBUS/VSP, okuvumela ukulawulwa kwabalandeli okunembayo kanye nempendulo ngephrothokholi ye-RS485, futhi ingahlanganiswa ngokuqondile nezilawuli ezimaphakathi noma amasistimu e-BMS.

• Ukuvikelwa kwesekethe eyisishiyagalolunye: Izinyathelo eziyisishagalolunye zokuvikela isekethe ziyasebenza ukuze kunqandwe izingozi ezingaba khona. Ngomfutho ongemuhle we-AHU duct oholela ekuphendukeni kwabalandeli, ukuqalisa kokuhlehla komoya nakho kuyasekelwa.

I-Wide Air Volume Range

• Impeller osayizi kusukelaI-310 ku-630mmayatholakala ukuze alingane nezikhala ezihlukene zokufaka, futhi amabakaki okukhweza ajwayelekile angakhethwa ukuze afakwe ngokushesha futhi kalula. Ingahlanganiswa ibe udonga lwabalandeli ukuze kuzuzwe ukugeleza komoya okukhulu. Izinjini ze-EC/DC/AC ingakhethwa ukuze ihambisane nezidingo zamandla emishini ehlukene. Okwenziwa ngokwezifiso ukuze kuhlangatshezwane nezidingo ezithile zohlelo lokusebenza, njenge Ukuvikelwa kokugqwala kwe-C5, isilinganiso sokuvikela se-IP56, nokusebenza emazingeni okushisa aphansi njenge -40°C.

Umkhiqizo Izicelo

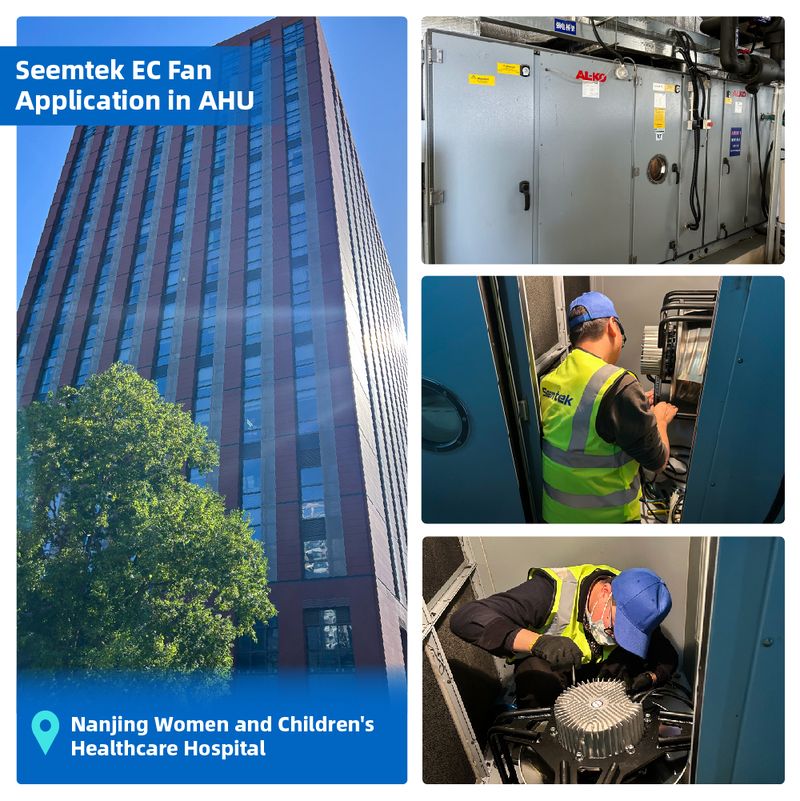

AHU Rukulungiswa

• Ukulahlekelwa kwamandla, izindleko eziphezulu zokunakekela, kanye nezinkinga ezingase zibe khona zokuzinza ngokuvamile ezihlotshaniswa nabalandeli bendabuko abashayelwa ngamabhande kumayunithi Okuphathwa Komoya (AHUs) ukukhathazeka okukhulu kubaphathi abaningi bezikhungo. Isixazululo sethu esisha sokubuyisela udonga lwabalandeli sibhekana nalezi zinkinga ngokuphumelelayo, sinikeza enye indlela enokwethenjelwa futhi eyonga amandla. Ngokufaka amafeni esimanjemanje e-EC esikhundleni sabalandeli abavamile abaqhutshwa ngebhande eligobile, singathola ukuthuthuka okuphawulekayo ekusebenzeni. Lokhu kuthuthukisa hhayi kuphela ithuthukisa ukusebenza kahle kwamandla ngo-20% kuya ku-50% kodwa futhi yehlisa amazinga omsindo, yenza ukunakekelwa kube lula, futhi inwebe isikhathi sokuphila semishini. Kuyisixazululo esingabizi futhi esimeme sokwenza kahle kwe-AHU.

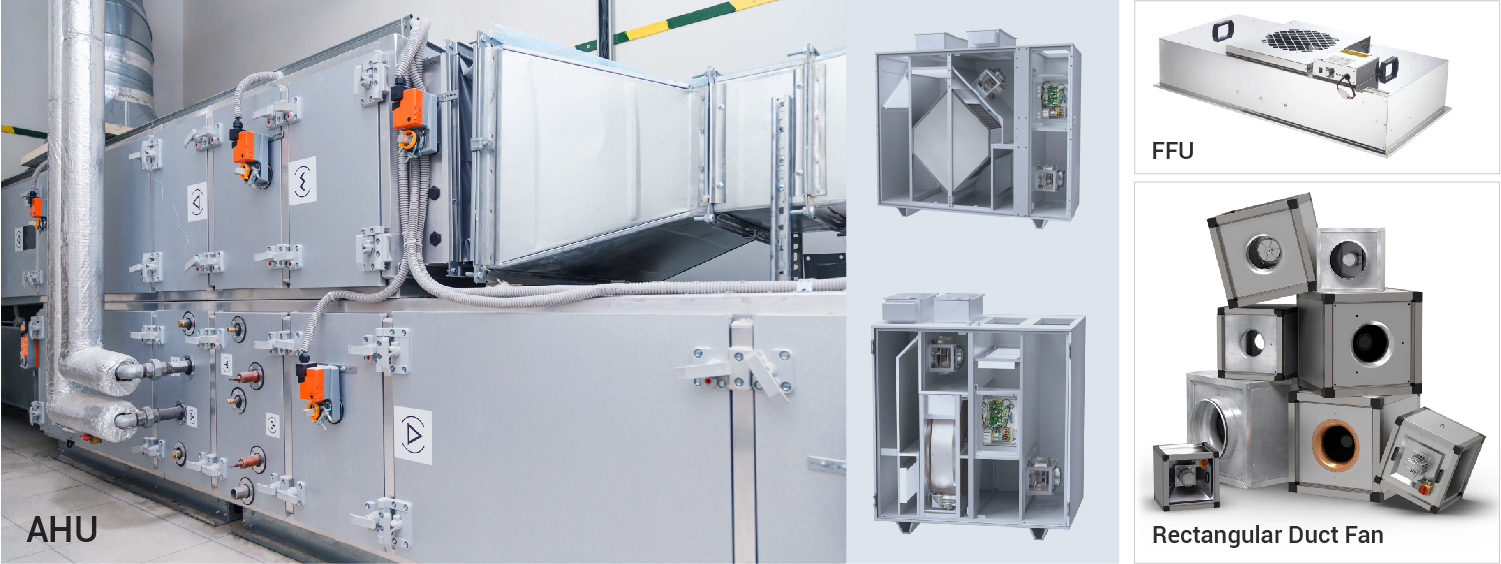

Izisetshenziswa Zokupholisa Umoya

• AHU: Ngengcindezi emile ephezulu engu-2300 Pa, ifeni yanelisa izimfuno zokumelana okuphezulu kwezinhlelo zokusebenza ze-AHU. Ifeni eyodwa ingaletha amandla afinyelela kwangu-6 kW kanye nokugeleza komoya okuphezulu okungu-23,000 m³/h. Ukwengeza, kwizicelo zezimboni, inketho yokuhlanganiswa kodonga lwabalandeli iyatholakala, ihlinzeka ngezixazululo eziguquguqukayo ukuze kuhlangatshezwane nezidingo ezahlukahlukene zohlelo lokusebenza.

• I-Rectangular Duct Fan: Abalandeli be-EC balungele abalandeli bepayipi elingunxande, banikela ngokusebenza kahle kwamandla aphezulu, ukulawula isivinini okunembile, nokusebenza komsindo ophansi. Idizayini yazo ehlangene nempilo ende izenza zifanelekele izindawo eziqinile, ziqinisekisa ukusebenza okuthembekile kanye nokuncipha kokusetshenziswa kwamandla.

• I-FFU: Kuzinhlelo zokusebenza ze-FFU (Iyunithi Yesihlungi Sabalandeli), ezidinga ukusebenza kahle okuphezulu, umsindo ophansi, nokulawulwa kweqembu okuzinzile endaweni yengcindezi emile emaphakathi kuya ephansi, kuye kwathuthukiswa amamodeli amabili asebenza kahle kakhulu abalandeli. Laba balandeli ababili benzelwe ukuhlangabezana nezidingo ezihlukile zezinhlelo ze-FFU, ukuqinisekisa ukusebenza kahle ezimeni ezinjalo.
